WK-com PRO*
the new air handling unit series with unlimited versatility

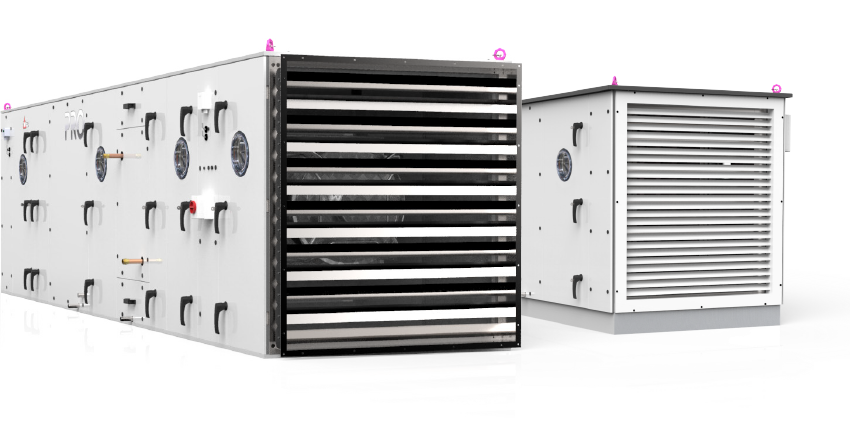

WK-com PRO* – the innovative and powerful air handling unit concept with limitless applications and configurations for indoor and outdoor installations.
The inherently stable and self-supporting framework is accommodated entirely within the unit but is not in contact with the air flow. Thermally separated panels completely enclose the framework.
The push-fit framework can be fully dismantled where necessary for ease of transport, handling and installation.
Patented hinges with three-dimensional adjustability are concealed within the door panels and are not visible from the interior or exterior. A proprietary lever lock with a closing mechanism integrated into the panels can neither touch nor damage the inner wall of the unit. All inner surfaces of the casing are completely smooth, without indentations, and can be cleaned without leaving any residue.
In general, only tested, microbially inert seals and sealants are used.
Quality Guarantee
„Customisable to the utmost extent!“
The unit is configured according to customer specifications. All air conditioning and air handling components can be combined and used.
All unit designs can be freely configured with individual, efficient and project-specific equipment.
Integral refrigeration and control technology, efficient heat recovery systems, all forms of humidification and dehumidification technology and much more, pose no problems for us.
An integral cable duct to simplify all internal cabling can be included as an optional extra.
With WK-com PRO*, you can rely on an air handling unit that delivers maximum quality and efficiency, and is compliant with all national and international standards, guidelines and ordinances!
- Indoor installation in T2/TB2
- Outdoor installation in T2/TB2
Design
Self-supporting framework
The framework is integrated elegantly within the unit and is separated from air flow. It can also be fully dismantled to overcome any logistical challenge.
Separated and without thermal bridges

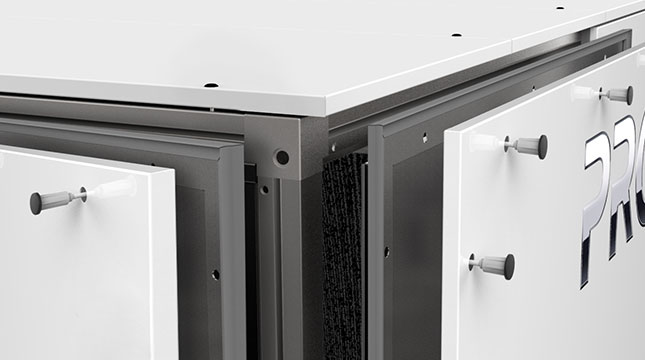

Panels without thermal bridges and Screwchannel
Centring guide for a precise connection

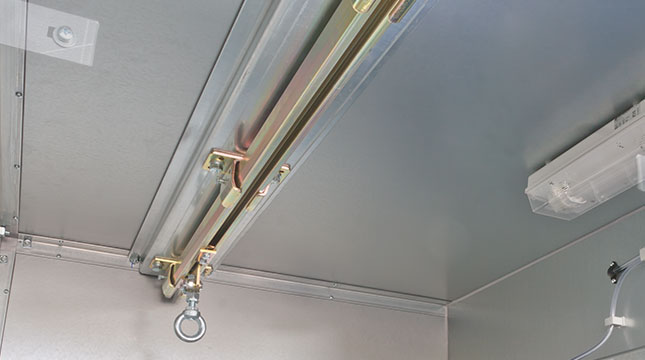

Extending rail for fan exchange
Hygiene

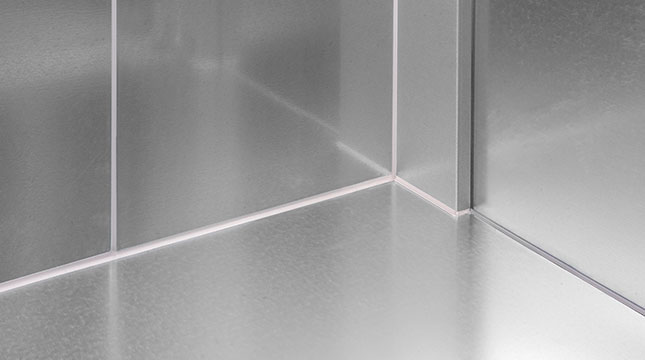

Smooth inner wall
With its smooth inner surfaces without joints or edges, our WK-com PRO* unit provides no breeding ground for micro-organisms.The casing is sealed hygienically with tested, microbially inert sealants.
Airtight louver flaps
Additional airtight louver flaps (DIN 1946 Pt.4) enable safe operation, even in extremely sensitive areas, such as operating theatres, where sterility is a matter of life and death.
3D condensate pan
The 3D pan, made from aluminium or stainless steel, has a three-dimensional fall, which reliably prevents water residues and the associated hygiene risks arising from bacterial growth.
Completely smooth on the inside

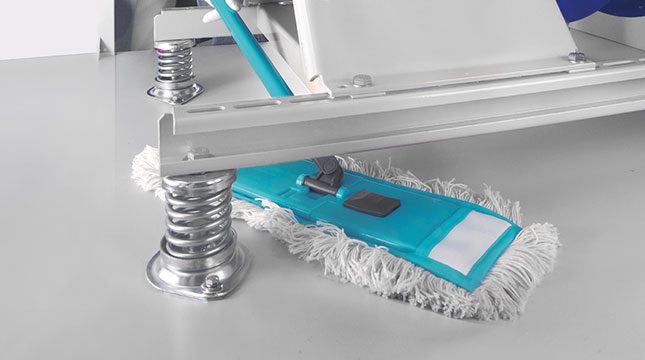

Residue-free cleaning
Airtight louver flaps
3D condensate pan empties quickly and completely
Inspection doors
Hinges

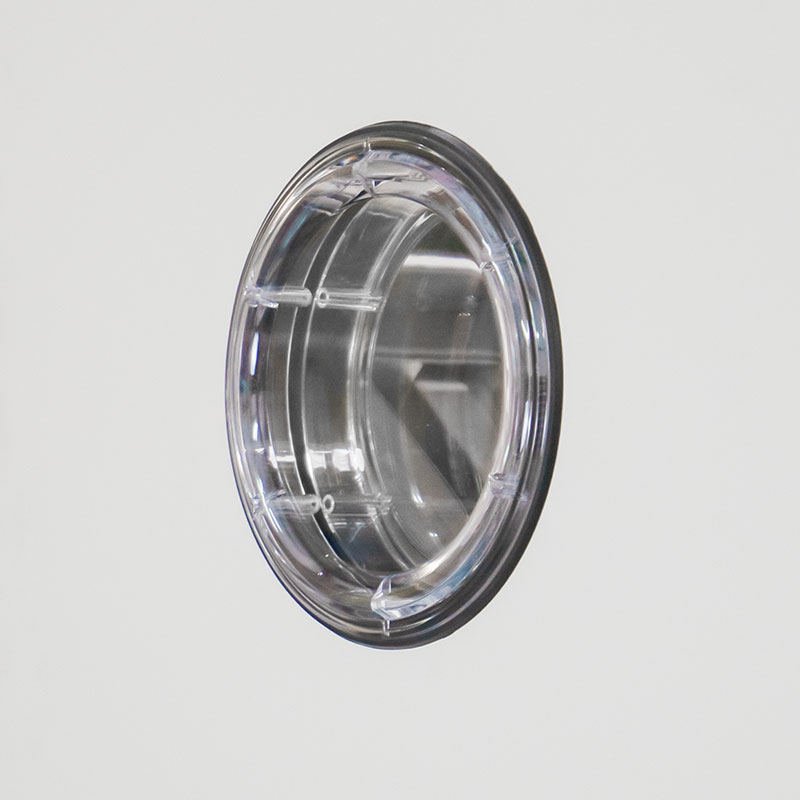

Patented hinges with three-dimensional adjustability are concealed within the door panels and are not visible from the interior or exterior. The insulated hinge and sight-glass design is a further guarantee of thermal tightness.

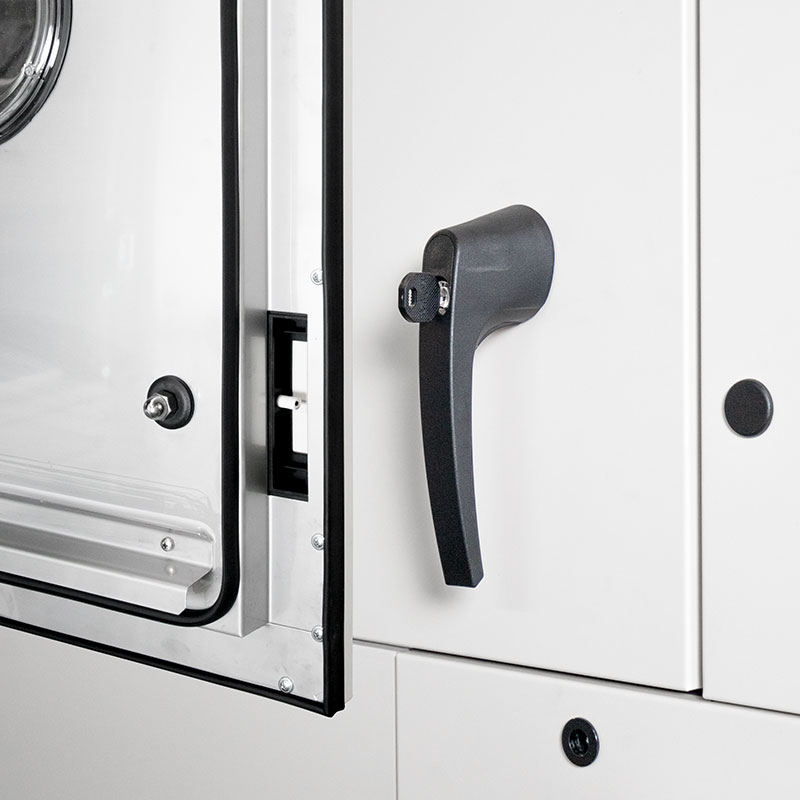

Internal lock
The lock concealed within the door panel does not touch the inner wall and ensures hygienically smooth inner surfaces. Thermal loss is almost zero thanks to the insulated mechanism. The doors can be opened from both the inside and outside.
Filters
All WK-com units are fitted with filters as standard to EN 779 (2012) or ISO ePM 1 - ISO ePM 10 to ISO 16890. Other filters can also be supplied on request. The filters treated with biostatic preservative prevent the growth of fungi and bacteria to ensure clean, healthy air. Biostatic filters boast an outstanding dust storage capacity and level of efficiency in damp conditions.
1. Panel filter 2. Compact filter 3. Short bag filter 4. Long bag filter 5. Grease trap filter 6. HEPA filter 7. Activated charcoal filter
Filter classes
Under EN 779, the filter class is defined according to the mean efficiency (Em) for 0.4 µm particles.
M5: ePM10 ≥ 50 %
M6: ePM2,5 ≥ 50 %
F7: ePM1 ≥ 50 %
F8: ePM1 ≥ 70 %
F9: ePM1 ≥ 80 %
ISO 16890 divides filters into groups.
ISO ePM 1, ISO ePM 2,5, ISO ePM 10 and ISO ePM coarse
The filters are grouped according to separation efficiency with reference to PM1, PM2.5 and PM10 (0.3-10 μm particles), dust storage capacity, gravimetric separation efficiency and differential pressure.
*Not yet available
Not Eurovent certified
